Circle Architecture Research Dossier

This dossier collects Circle-oriented architecture research and interview-preparation material. It is intentionally separate from the architecture portfolio: these are company research and architecture-review tracks, not personal ownership claims.

The value of this dossier is evidence-backed financial infrastructure analysis: public API platform design, node architecture, cross-chain settlement, stablecoin controls, and operational caveats.

Broader Ecosystem And System-Design Context

These diagrams are useful for interview preparation and high-level architecture discussion, but they are broader ecosystem/system-design views rather than source-validated implementation maps. They were generated by ChatGPT and should be treated as implied or hypothetical framing, not as concrete validated Circle production architecture.

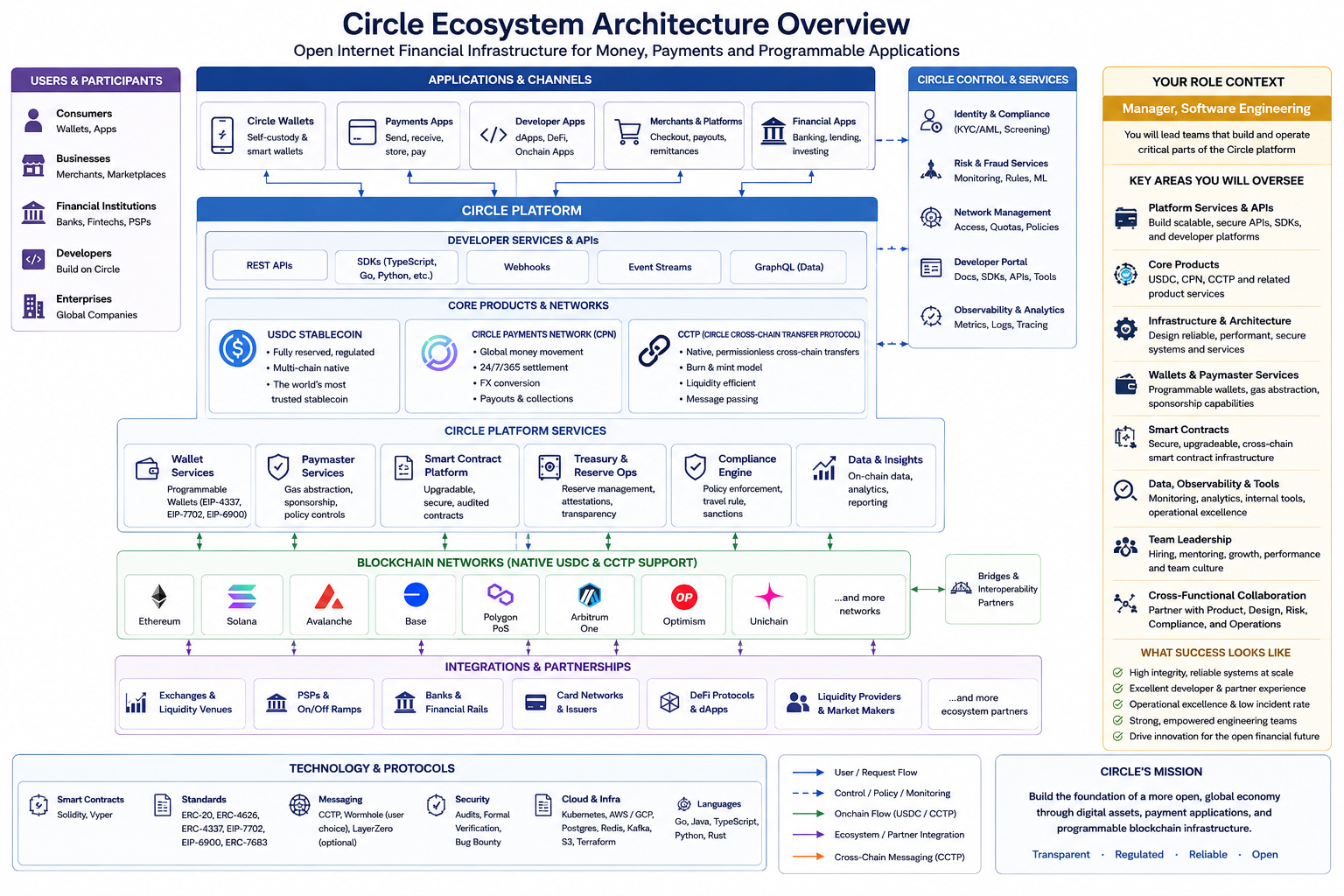

Circle System Architecture Overview

Use this as a visual orientation layer for Circle's product and infrastructure ecosystem. It can help frame conversations about stablecoin issuance, APIs, settlement, wallets, cross-chain flows, and operational domains before moving into the source-backed project tracks below.

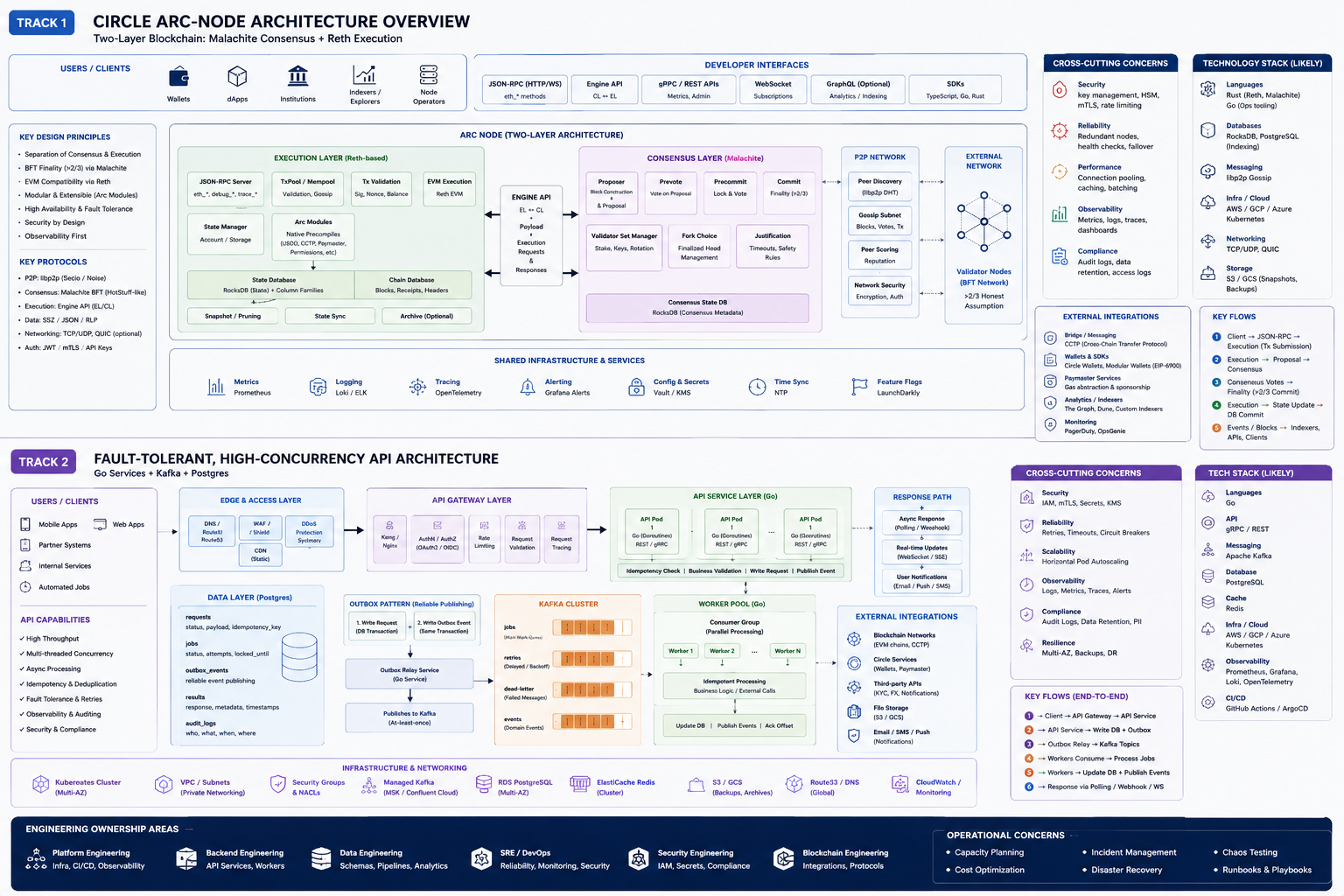

Circle System Design Tracks

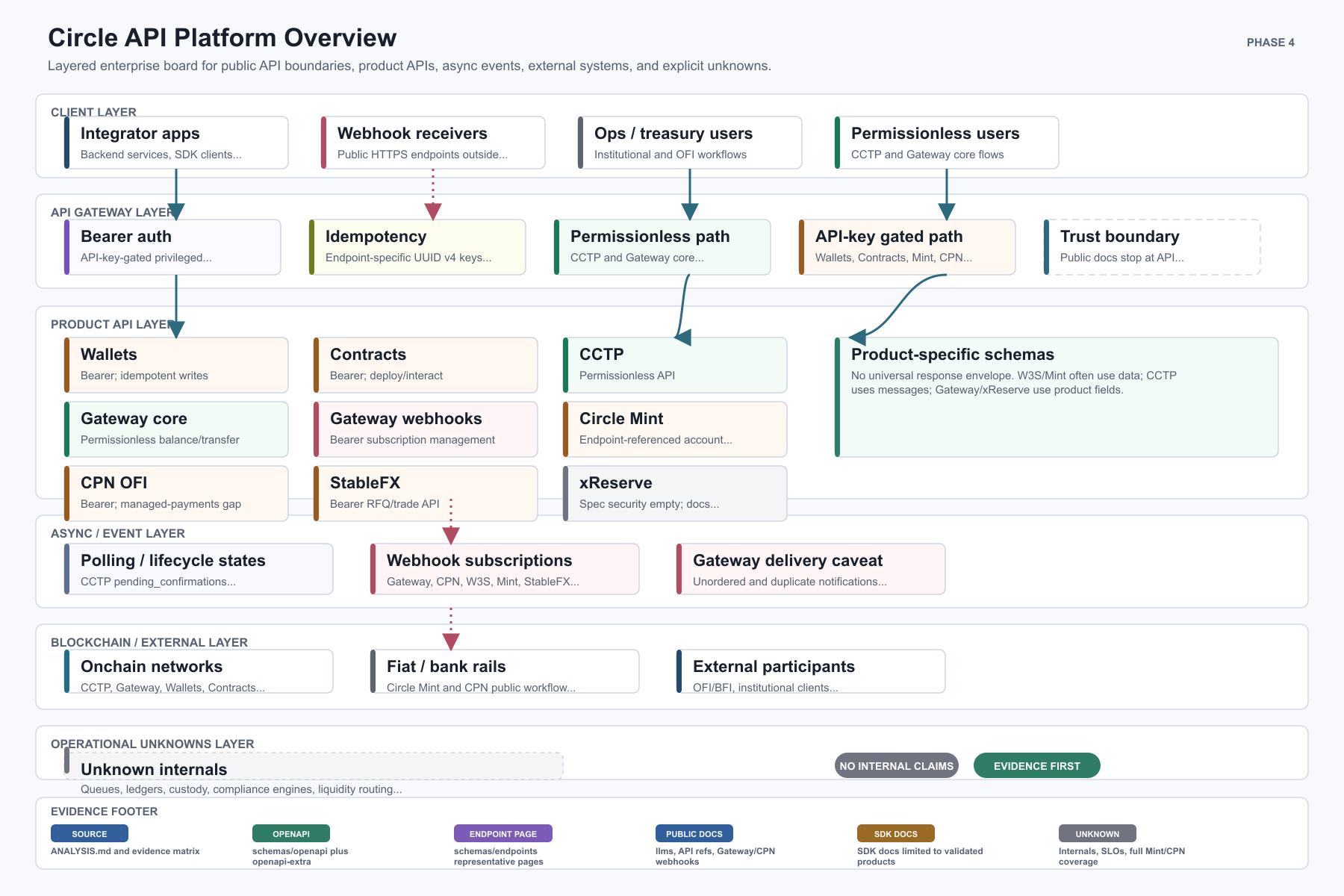

Circle API

Circle API is a documentation/OpenAPI-driven platform architecture track covering public developer surfaces across Wallets, Contracts, CCTP, Gateway, Circle Mint, Circle Payments Network, StableFX, and xReserve.

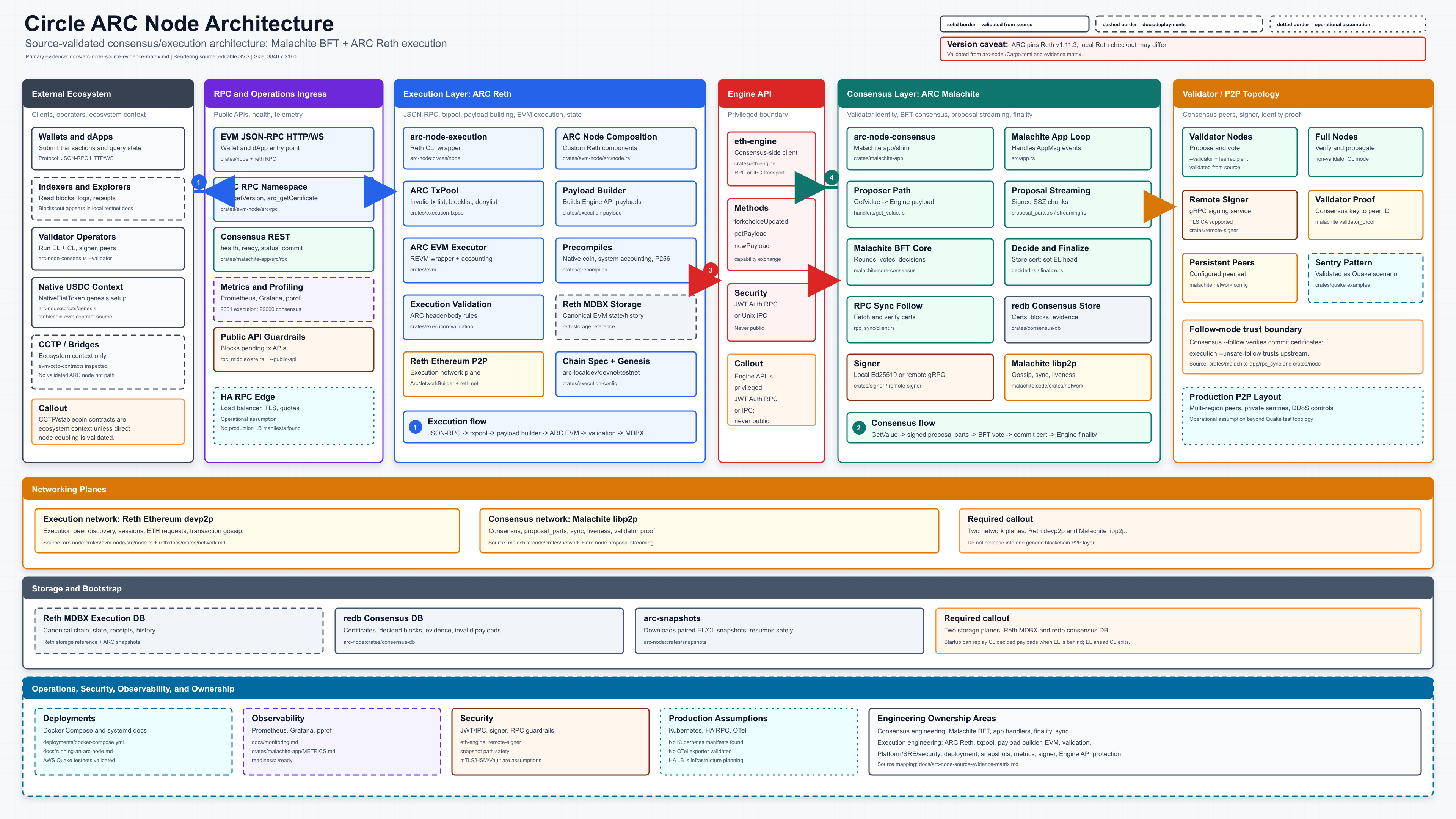

ARC Node

ARC Node is an EVM-compatible L1 node architecture with a source-validated execution/consensus split: ARC-customized Reth execution, ARC Malachite consensus, Engine API boundary, separate storage/networking planes, snapshots, RPC surfaces, telemetry, and validator/operator responsibilities.

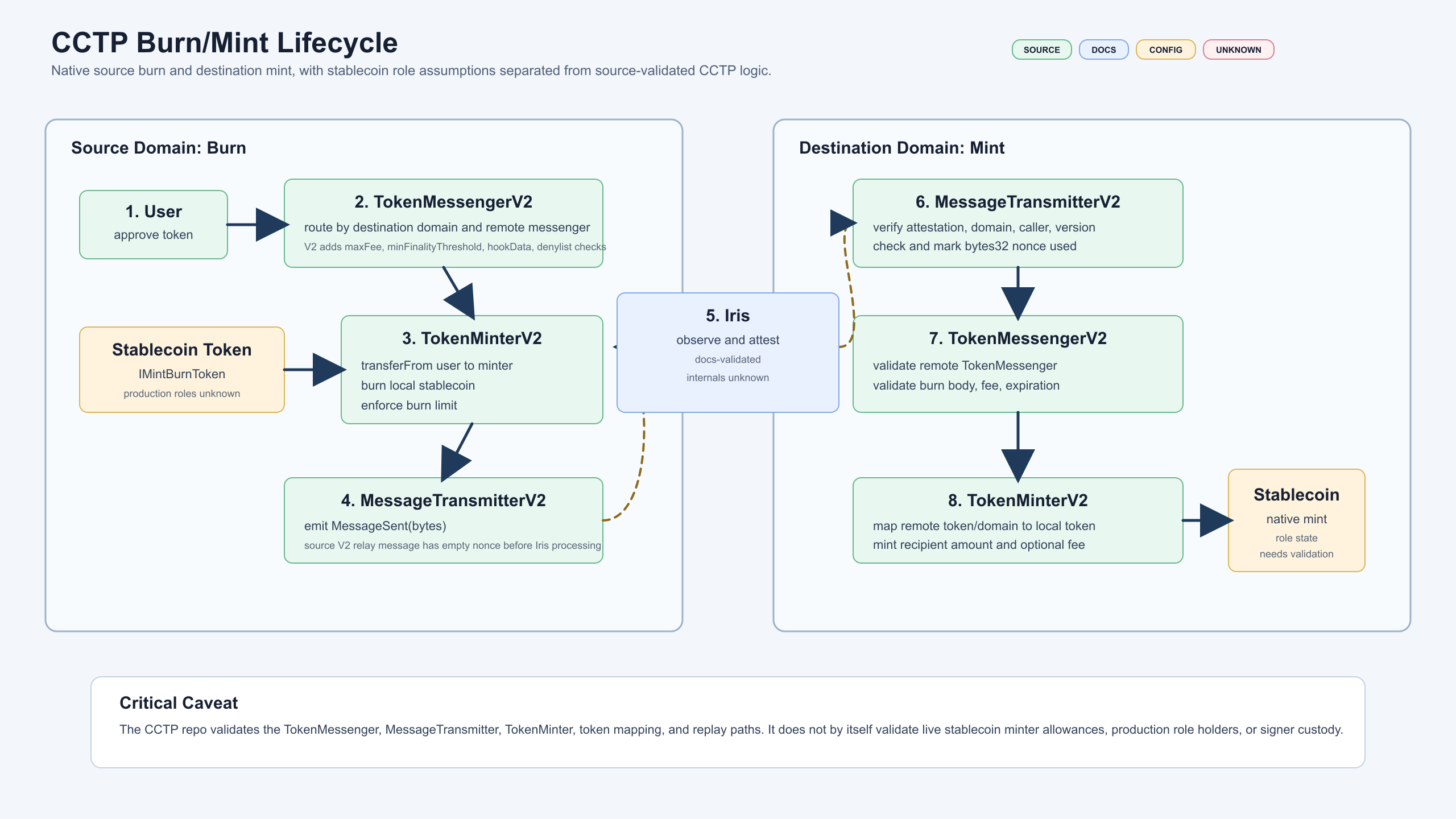

Circle CCTP

CCTP is a Solidity architecture track for native burn/mint cross-chain stablecoin transfer. It maps TokenMessenger, MessageTransmitter, TokenMinter, V1/V2 message flows, attestation verification, replay protection, finality thresholds, fee/hook behavior, and the off-chain Iris attestation dependency.

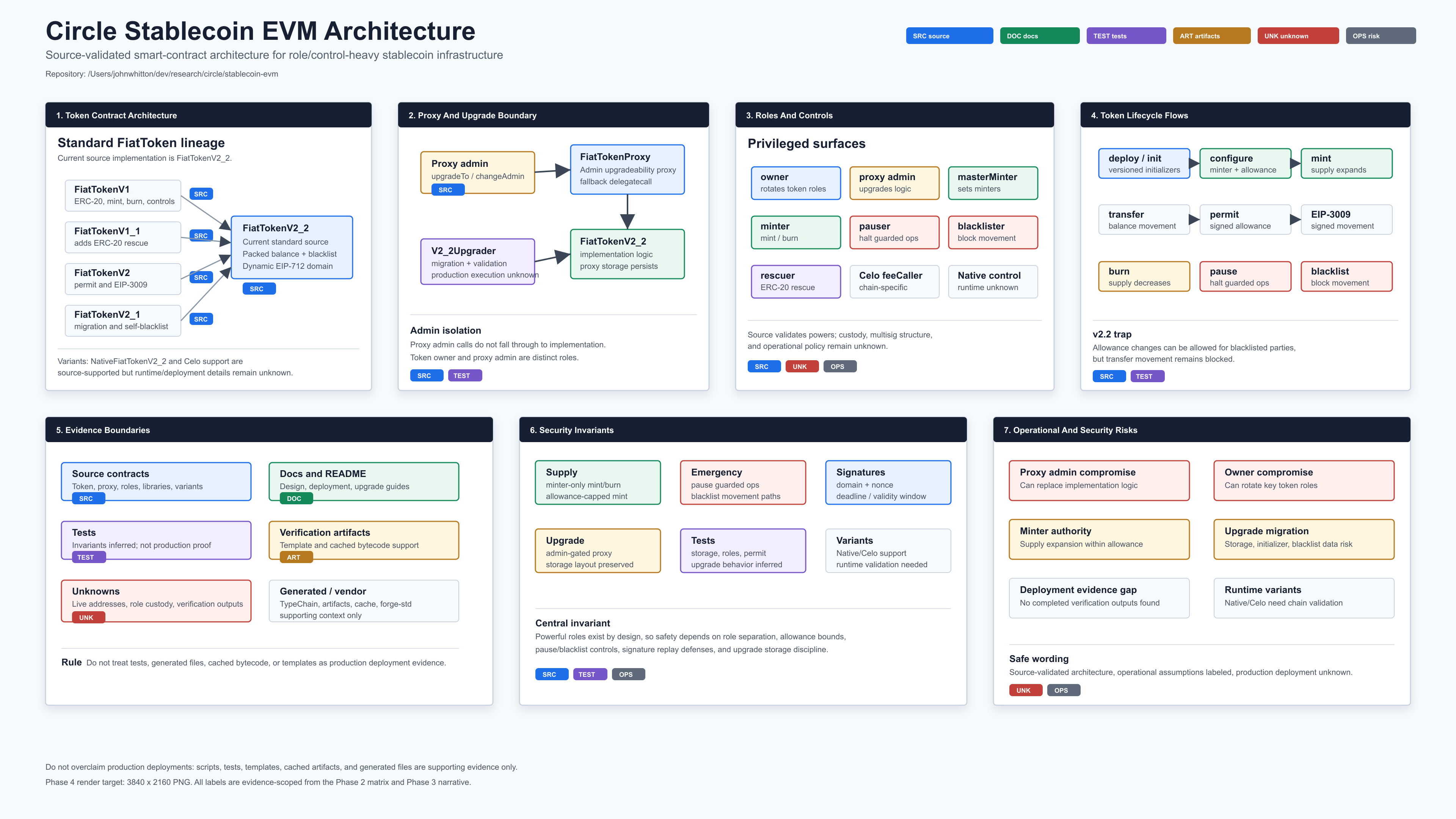

Circle Stablecoin

Circle Stablecoin is a source-validated EVM stablecoin contract architecture track covering FiatToken lineage, upgradeable proxy support, privileged mint/burn controls, pausing, blacklisting, rescue, EIP-2612 permit, EIP-3009 authorization transfers, chain-specific variants, deployment tooling, and production-evidence limits.

Evidence Posture

The Circle API, ARC Node, CCTP, and Circle Stablecoin sections use source, public docs, OpenAPI schemas, endpoint markdown, deployment/config artifacts, and explicitly labeled operational assumptions. The broader ecosystem diagrams at the top are intentionally labeled as implied/hypothetical system-design aids, not implementation evidence. This dossier should be used as research and interview-preparation material, not as a claim of direct ownership.
